Rails R50 / R65

R50 and R65 railway steel products are industrial rail solutions supported by technical section drawings, measurements, weights and analysis documents.

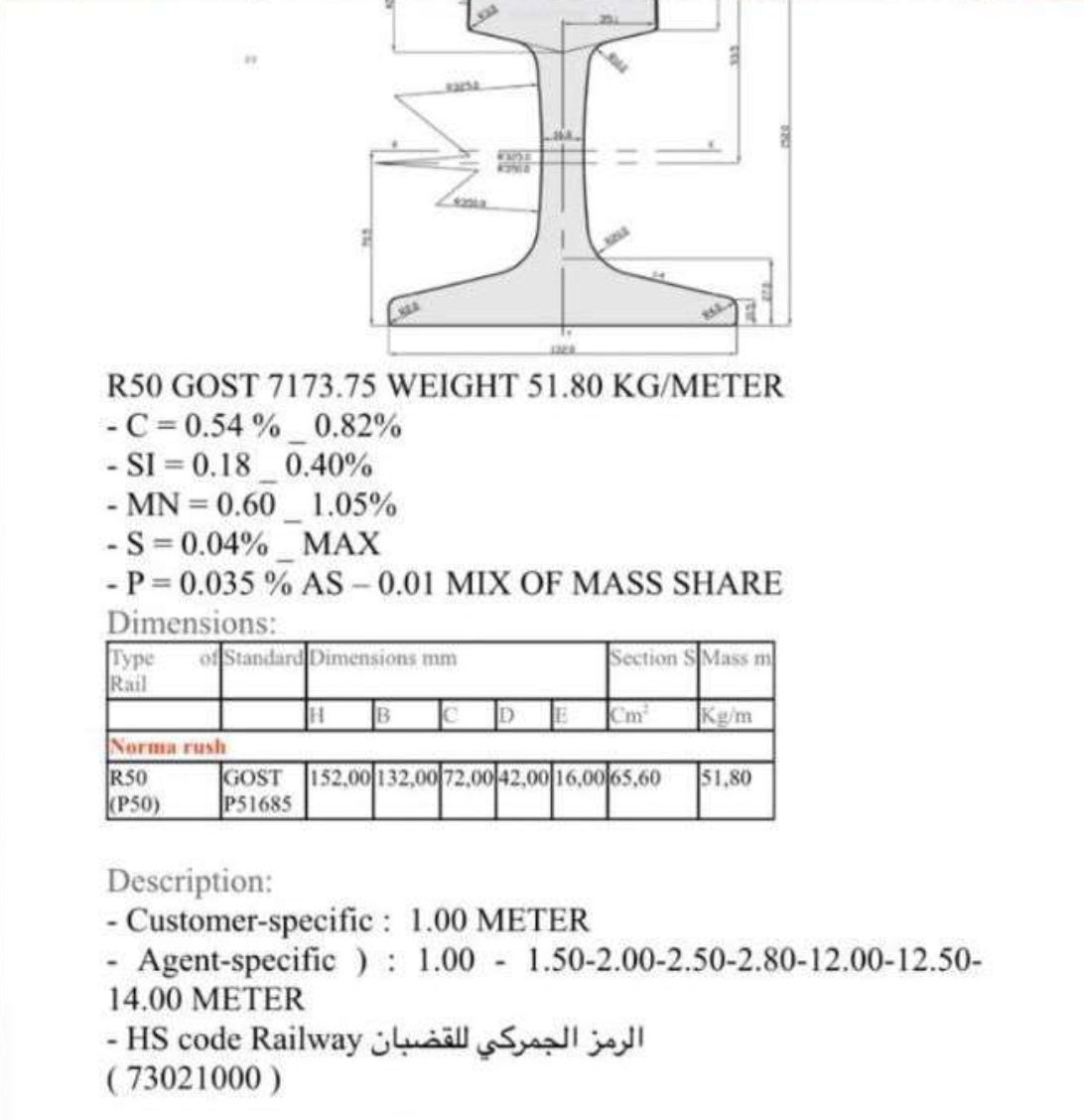

Rails R50 R65 R50 R65 Drawing Railway Steel Rail Infrastructure

Product Summary

Product: Railway Steel R50 / R65

Type: R50 and R65

Standard: GOST / supported by technical drawings

Application: Railway / industrial rail systems

Documentation: Technical drawing + chemical analysis + test certificate

Files & Quotation

You can review technical information for this product and request a quotation.

Request a Quote

Basic Technical Information

R50 Weight51.80 kg / meter
R65 Weight64.87 kg / meter
R50 StandardGOST P51685
R65 StandardGOST P51685 / GOST 8165.75 supported documentation
R50 Lengths1.00 / 1.50 / 2.00 / 2.50 / 2.80 / 12.00 / 12.50 / 14.00 meter options
R65 Lengths1.00 / 1.50 / 2.00 / 2.50 / 2.80 / 12.00 / 12.50 / 14.00 meter options
Chemical SupportCarbon, silicon, manganese, phosphorus, sulfur and other analysis values are included in the technical documentation.
